Another one-off
Page 1 of 2 12 LastLast
Results 1 to 10 of 18

Thread: Another one-off

  1. #1
    Bad Robot Quirk's Avatar
    Join Date
    Apr 2010
    Posts
    1,660
    Post Thanks / Like
    Rep Power
    10

    Another one-off

    I have been wanting to do a transverse leafsetup for quite some time, after a few "prototypes" I finally have a solid setup. Just some cleanup and Delrin spacers to replace the bronze bushings, but it will get there.







    Got some old school radius arms built....


    Now it needs an equally sweet old school body....

    Why do I care where Waldo is?

    THE MASTER!!

  2. Likes JSLICK liked this post
  3. #2
    President JSLICK's Avatar
    Join Date
    Apr 2010
    Location
    Stowe, Pa
    Posts
    3,624
    Post Thanks / Like
    Rep Power
    10
    Very interesting idea, how well does it flex? I saw the first pic. Can you throw some wheels on it for a better idea?
    EPARCCrawlers President

    2010 1.9 Inaugural Champion
    2011 Class 2 Scale Season Champion
    2012 Club Champion 1.9, 2.2, Class 1, Class 2
    2013 Class 2 Scale Season Champion
    2014 East Coast G6 1.9 Driver of the Day


    TEAM DRIVER
    LOCKED UP RC
    - SCALE PERFORMANCE PARTS -

    TEAM DRIVER
    OTTSIX

    TEAM DRIVER
    Purpmart Specialist

    TEAM DRIVER
    CREATIONFAB Web Wheeler


  4. #3
    Bad Robot Quirk's Avatar
    Join Date
    Apr 2010
    Posts
    1,660
    Post Thanks / Like
    Rep Power
    10
    Quote Originally Posted by JSLICK View Post
    Very interesting idea, how well does it flex?
    Flexes fine, the center pivots and the leaf flexes as much as a leaf does. right now the shock I have mocked up on it limits way to much, but I will iron that out

    It is not for a comp rig, it has another intended use

    Why do I care where Waldo is?

    THE MASTER!!

  5. #4
    Bad Robot Quirk's Avatar
    Join Date
    Apr 2010
    Posts
    1,660
    Post Thanks / Like
    Rep Power
    10
    Just a little more done...

    Here is the lid
    Yet to be added: suicide doors, headers, side pipe/sliders, visor.
    The nose has been severely reworked, shortened in back, pinched, and lengthened in front, oval rear window in progress. The grill is a reworked FJ grill.


    This will roughly be the ride height
    Transverse front leaf
    Radius arms
    Triangulated top link will be replaced with a track bar
    Shooter shackles
    Since this has funky suspension, you can imagine finding shocks to fit is a challenge, with the shooter shackles the axle drops more than it compresses, so the correct size shock is tricky... You can barely see it but I have one rear shock made, three more to follow, I will post the build on them later.









    Still plenty to do, yes the frame rails are long in front, stay tuned there is a method to my madness.
    Wood flat bed, metal edging, stake pockets, back rack, and ????

    This is purely being built to be a cool truck, I am tired of the comp only attitude
    Another budget build, only $50 in it to date not much more to buy, I pretty much have everything from the interior to the winch and all electrics, time on the other hand...............

    Why do I care where Waldo is?

    THE MASTER!!

  6. Likes Maxwedge, brazwewn, JSLICK liked this post
  7. #5
    Senior Member Sergio's Avatar
    Join Date
    Feb 2012
    Posts
    402
    Post Thanks / Like
    Rep Power
    7
    very cool john...

  8. #6
    Super Moderator rik's Avatar
    Join Date
    Apr 2010
    Location
    Allentown
    Posts
    1,709
    Post Thanks / Like
    Rep Power
    13
    i like it. it's got style....

  9. #7
    Some call me fat Jesus. DIRTY's Avatar
    Join Date
    Apr 2010
    Location
    land of the meek, home of the slave.
    Posts
    2,126
    Post Thanks / Like
    Rep Power
    13
    The force is strong with this one. I like.

    "If the American people ever allow private banks to control the issue of their currency, first by inflation, then by deflation, the banks and corporations that will grow up around them will deprive the people of all property until their children wake up homeless on the continent their Fathers conquered...I believe that banking institutions are more dangerous to our liberties than standing armies... The issuing power should be taken from the banks and restored to the people, to whom it properly belongs." -Thomas Jefferson
    rikkles - i'm loving this nitro jazz, its's dirty, smelly, and fast. much like marc


  10. #8
    Bad Robot Quirk's Avatar
    Join Date
    Apr 2010
    Posts
    1,660
    Post Thanks / Like
    Rep Power
    10
    Thanks all.. I needed a break to build something just for the sake of building something fun.

    The mechanical lunacy is part of the fun with this, more lunacy to come

    Why do I care where Waldo is?

    THE MASTER!!

  11. #9
    Sage member cjsmith4's Avatar
    Join Date
    Sep 2011
    Location
    A, A
    Posts
    612
    Post Thanks / Like
    Rep Power
    8
    That body is sick!! very impressive.

  12. #10
    Bad Robot Quirk's Avatar
    Join Date
    Apr 2010
    Posts
    1,660
    Post Thanks / Like
    Rep Power
    10

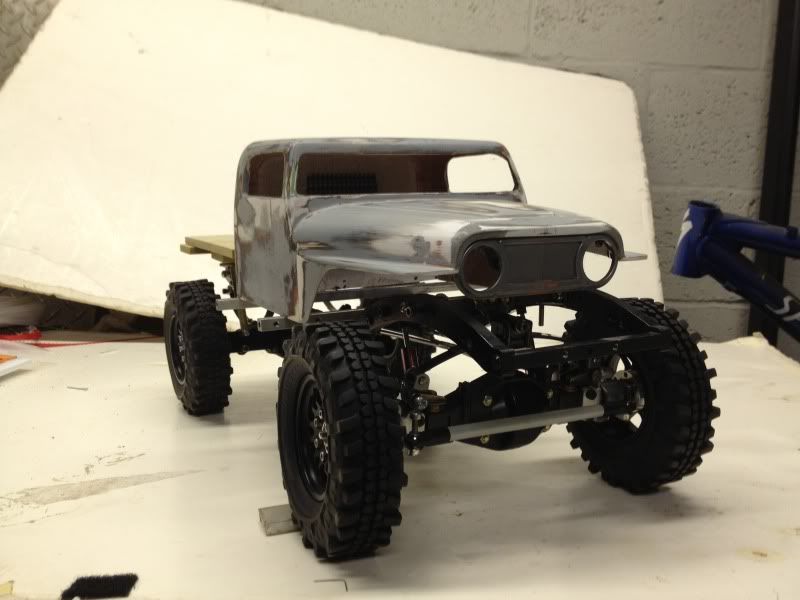

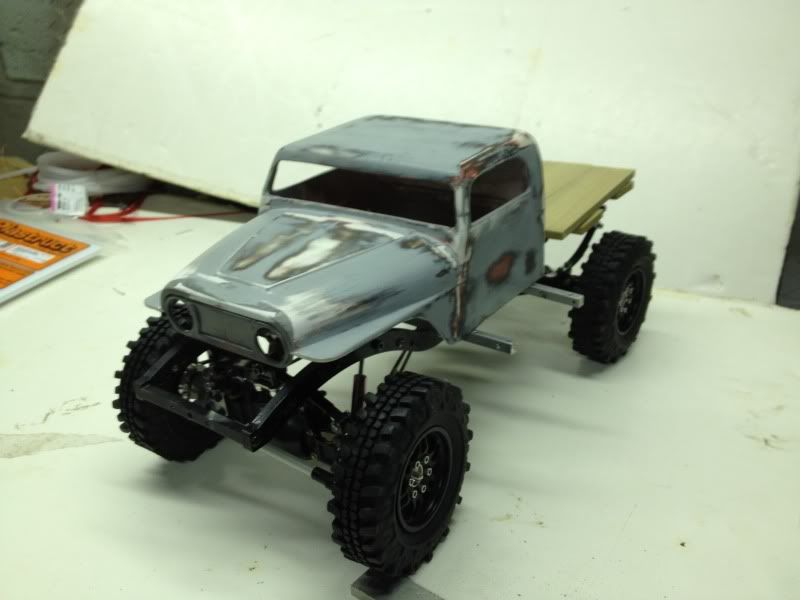

    Finally blew the dust of this pig--- Yes I have more semi-dead projects taking up space







    This thing is a mechanical nightmare.. But everything works, just very out of the ordinary.. Kinda Quirky!!

    Why do I care where Waldo is?

    THE MASTER!!
